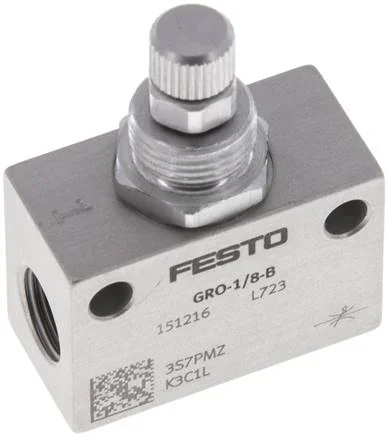

Festo - GRO-1/8-B-151216 - Throttle Valve

SKU: festo-gro-1-8-b-151216

Browse all parts
Festo - GRO-1/8-B-151216 - Throttle Valve

€78.30€66.92 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€78.30

Brand
Festo
Nut Material
Aluminium wrought alloy
Material Note
RoHs compliant
Fastening Type
With throughway bores
Seals Material
NBR
Valve Function
Throttle function
Setting Element
knurled screw
Sleeve Material
POM
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Medium Temperature (°C)
-20 to 60
Operating Pressure (bar)
0 to 10
Ambient Temperature (°C)
-20 to 60
Regulation Screw Material
High-alloyed steel
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
210
EAN
4052568069957
Manufacturer
Festo
