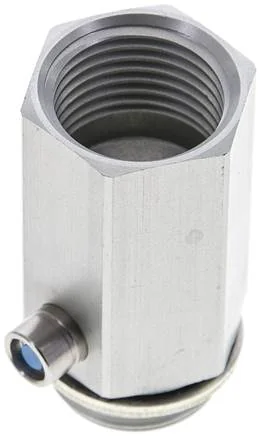

Festo - HAB-1/2-184588 - Manual Override

SKU: festo-hab-1-2-184588

Festo - HAB-1/2-184588 - Manual Override

€44.71€38.21 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€44.71

Brand
Festo
Material Note
RoHs compliant
Fastening Type
Screwable
Valve Function
Venting element
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
14
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Medium Temperature (°C)
-20 to 80
Operating Pressure (bar)
0 to 10
Ambient Temperature (°C)
-20 to 80
Max. Tightening Torque (Nm)
45
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate, Exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)
165
EAN
4052568014506
Manufacturer
Festo
