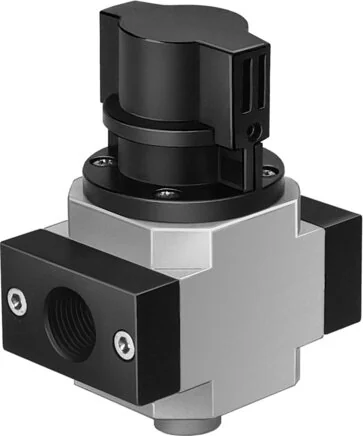

Festo - HE-1-D-MAXI-NPT-173899 - Switch-On Valve

SKU: festo-he-1-d-maxi-npt-173899

Browse all parts
Festo - HE-1-D-MAXI-NPT-173899 - Switch-On Valve

€220.81€188.73 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€220.81

Brand
Festo
B-value
0.37
C-value
25,9
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Manually
Fastening Type
With Accessories
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 bistable
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Sealing Principle
Soft
Construction Set Up
Piston pusher
Pitch Dimension (mm)
65
Hand Assist Actuation
None
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1 NPT
Pneumatic Connection 2
1 NPT
Pneumatic Connection 3
G3/8
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0 to 1.6
Ambient Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
6500
EAN
4052568315672
Manufacturer
Festo
