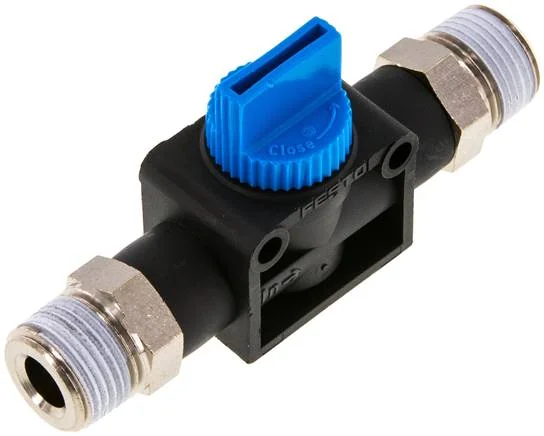

Festo - HE-3-3/8-3/8-153298 - Shut Off Valve

SKU: festo-he-3-3-8-3-8-153298

Browse all parts
Festo - HE-3-3/8-3/8-153298 - Shut Off Valve

€35.87€30.66 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€35.87

Brand
Festo
Control Type
Direct
Material Note
RoHs compliant
Stud Material
Nickel-plated brass
Actuation Type
Manually
Fastening Type
Direktbefestigung über Gewinde
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 bistable
Exhaust Function
Cannot be throttled
Housing Material
PBT reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Sealing Principle
Soft
Nominal Width (mm)
4,7
Construction Set Up
Piston pusher
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
R3/8
Pneumatic Connection 2
R3/8
Pneumatic Connection 3
Not recorded
Medium Temperature (°C)
60
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
797,4
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568033668
Manufacturer
Festo
