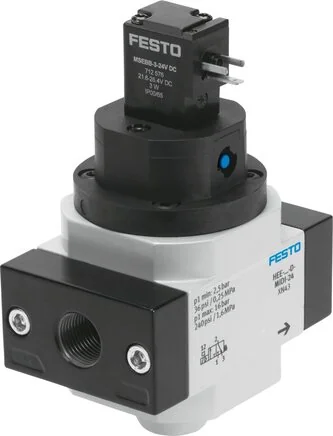

Festo - HEE-1/2-D-MIDI-24-NPT-173908 - Switch-On Valve

SKU: festo-hee-1-2-d-midi-24-npt-173908

Browse all parts
Festo - HEE-1/2-D-MIDI-24-NPT-173908 - Switch-On Valve

€263.81€225.48 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€263.81

Brand
Festo
B-value
0.3
C-value
17
Overlap
positive Überdeckung
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Accessories
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Sealing Principle
Soft
Control Air Supply
Internal
Construction Set Up
Piston pusher
Pitch Dimension (mm)
55
Electrical Connection
acc. to DIN EN 175301-803
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/2 NPT
Pneumatic Connection 2
1/2 NPT
Pneumatic Connection 3
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,25 to 1,6
Signal Condition Display
With Accessories
Ambient Temperature (°C)
-10 to 60
Coil Characteristic Value
24 V DC: 2,5 W
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
3600
EAN
4052568315764
Manufacturer
Festo
