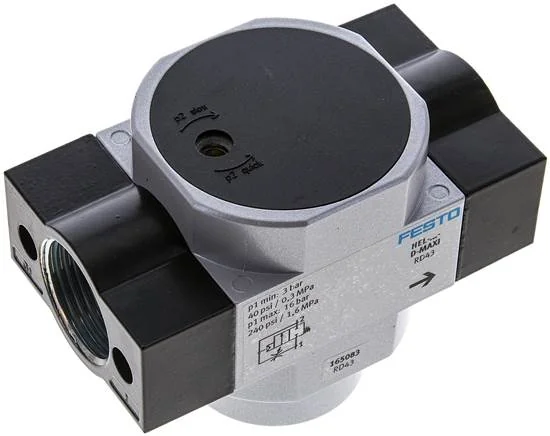

Festo - HEL-1-D-MAXI-165083 - Switch-On Valve

SKU: festo-hel-1-d-maxi-165083

Browse all parts
Festo - HEL-1-D-MAXI-165083 - Switch-On Valve

€245.66€209.97 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€245.66

Brand
Festo
B-value
0.54
C-value
28,3
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
pipe installation
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
2/2 closed monostable
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Sealing Principle
Soft
Construction Set Up
Piston pusher
Hand Assist Actuation
None
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1
Pneumatic Connection 2
G1
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,3 to 1,6
Ambient Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
6500
EAN
4052568137519
Manufacturer
Festo
