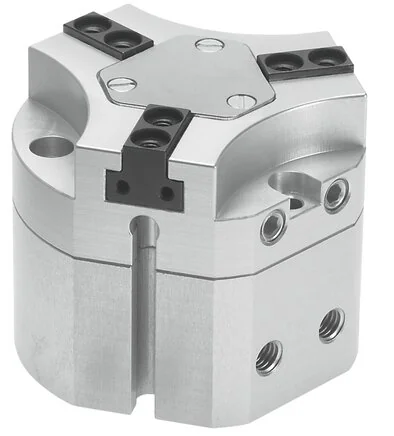

Festo - HGDT-50-A-G2-540870 - Three-Point Gripper

SKU: festo-hgdt-50-a-g2-540870

Browse all parts
Festo - HGDT-50-A-G2-540870 - Three-Point Gripper

€1,754.20€1,499.32 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,754.20

Brand
Festo
Size
50
Mass Inertia
13,92
Fastening Type
With Female thread and dowel pin
Gripper Function
3 point
Housing Material
COMPCOTE-beschichtet
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
High-alloyed stainless steels
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
G1/8
Gripper Jaws Material
Stahl, gehärtet
Gripping Force Safety
When closing
Installation Position
arbitrary
Quantity Gripper Jaws
3
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
4 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,03
Stroke Per Gripper Jaw (mm)
8
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,05
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pneumatic Connection Blocking Air
M5
Lubrication Interval Guide Elements
5
Max. Working Frequency Gripper (Hz)
4
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Pressure Blocking Air (bar)
0 to 0.5
Max. Force On Gripper Jaws Fz Static (N)
1.500
Max. Mass Per External Griper Finger (g)
160
Max. Torque On Gripper Jaws Mx Static (Nm)
50
Max. Torque On Gripper Jaws My Static (Nm)
30
Max. Torque On Gripper Jaws Mz Static (Nm)
40
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,1
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
70
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
61
EAN
4052568179441
Manufacturer
Festo
