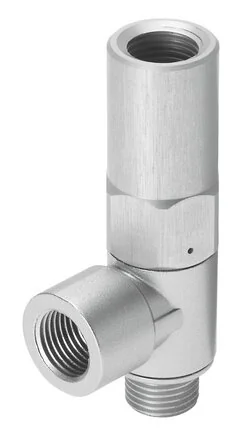

Festo - HGL-1/8-1/8-B-543253 - Piloted Check Valve

SKU: festo-hgl-1-8-1-8-b-543253

Browse all parts
Festo - HGL-1/8-1/8-B-543253 - Piloted Check Valve

€74.21€63.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€74.21

Brand
Festo
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
with male thread
Seals Material
NBR
Valve Function
Unlockable check valve function
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Banjo Bolt Material
eloxiert
Installation Position
arbitrary
Control Pressure (MPa)
0,2 to 1
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Operating Pressure (MPa)
0,05 to 1
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
60
Control Air 21 Connection
G1/8
Swivel Connection Material
Zinc pressure cast
Check Valve Collar Material
NBR
Standard Flow Rate 1->2 (6-0)
430
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Tightening Torque (Nm)
3,50
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate 1->2 (6-5)
300
Tolerance To Nominal Tightening Torque
± 10 %
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568005825
Manufacturer
Festo

Be the first to write a review!
