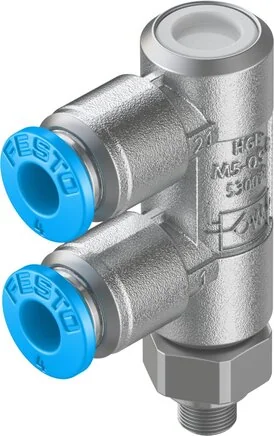

Festo - HGL-M5-QS-4-530038 - Piloted Check Valve

SKU: festo-hgl-m5-qs-4-530038

Browse all parts
Festo - HGL-M5-QS-4-530038 - Piloted Check Valve

€58.83€50.28 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€58.83

Brand
Festo
Material Note
RoHs compliant
Stud Material
Zinc-plated steel
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
with male thread
Seals Material
NBR
Valve Function
Unlockable check valve function
Sleeve Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
Control Pressure (MPa)
0,2 to 1
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
QS-4
Pneumatic Connection 2
M5
Maritime Classification
see Certificate
Medium Temperature (°C)
60
Operating Pressure (MPa)
0,05 to 1
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
60
Control Air 21 Connection
QS-4
Swivel Connection Material
Zinc pressure cast
Check Valve Collar Material
NBR
Standard Flow Rate 1->2 (6-0)
200
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Tightening Torque (Nm)
1,25
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate 1->2 (6-5)
130
Tolerance To Nominal Tightening Torque
± 10 %
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568085599
Manufacturer
Festo
