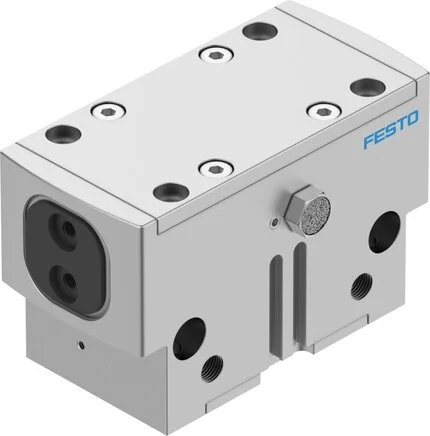

Festo - HGPD-50-A-1132951 - Parallel Gripper

SKU: festo-hgpd-50-a-1132951

Browse all parts
Festo - HGPD-50-A-1132951 - Parallel Gripper

€1,971.32€1,684.89 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,971.32

Brand
Festo
Size
50
Drive System
pneumatic
Mass Inertia
26,19
Material Note
RoHs compliant
Fastening Type
With Female thread and dowel pin
Gripper Function
Parallel
Housing Material
Anodized aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
High-alloyed stainless steels
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Protection Category
IP65
Pneumatic Connection
G1/8
Gripper Jaws Material
Stahl, gehärtet
Gripping Force Safety
without
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
3 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,05
Stroke Per Gripper Jaw (mm)
12
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,02
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pneumatic Connection Blocking Air
M5
Lubrication Interval Guide Elements
5
Max. Working Frequency Gripper (Hz)
2
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Pressure Blocking Air (bar)
0 to 0.5
Max. Force On Gripper Jaws Fz Static (N)
2.000
Max. Mass Per External Griper Finger (g)
318
Max. Torque On Gripper Jaws Mx Static (Nm)
90
Max. Torque On Gripper Jaws My Static (Nm)
60
Max. Torque On Gripper Jaws Mz Static (Nm)
50
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,1
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
100
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
90
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
894
Total Gripping Force, Opening, 0.6MPa (6bar, 87 psi) (N)
944
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
447
Gripper Force Per Gripper Jaw, Opening, 0.6 MPa (6 bar, 87 psi) (N)
472
EAN
4052568227166
Manufacturer
Festo
