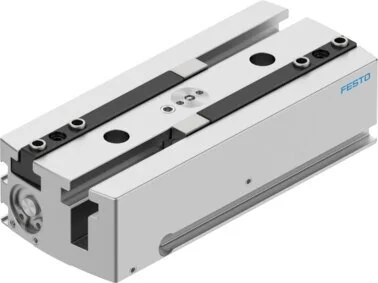

Festo - HGPL-14-40-A-B-3361480 - Parallel Gripper

SKU: festo-hgpl-14-40-a-b-3361480

Browse all parts
Festo - HGPL-14-40-A-B-3361480 - Parallel Gripper

€1,815.24€1,551.49 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,815.24

Brand
Festo
Size
14
Drive System
pneumatic
Mass Inertia
6,69
Material Note
RoHs compliant
Fastening Type
With Throughway bore and centring sleeve
Gripper Function
Parallel
Housing Material
Aluminium-Knetlegierung, gleiteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Toothed rack/pinion
Pneumatic Connection
M5
Gripper Jaws Material
Stahl, gehärtet
Gripping Force Safety
without
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
3 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,03
Stroke Per Gripper Jaw (mm)
40
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,05
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Lubrication Interval Guide Elements
5
Max. Working Frequency Gripper (Hz)
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
500
Max. Mass Per External Griper Finger (g)
80
Max. Torque On Gripper Jaws Mx Static (Nm)
35
Max. Torque On Gripper Jaws My Static (Nm)
35
Max. Torque On Gripper Jaws Mz Static (Nm)
35
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,2
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
163
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
171
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
158
Total Gripping Force, Opening, 0.6MPa (6bar, 87 psi) (N)
126
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
79
Gripper Force Per Gripper Jaw, Opening, 0.6 MPa (6 bar, 87 psi) (N)
63
EAN
4052568269173
Manufacturer
Festo
