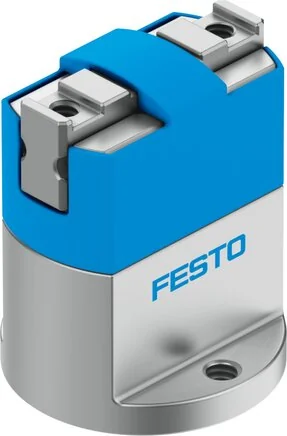

Festo - HGPM-08-EZ-G9-197564 - Parallel Gripper

SKU: festo-hgpm-08-ez-g9-197564

Browse all parts
Festo - HGPM-08-EZ-G9-197564 - Parallel Gripper

€434.75€371.58 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€434.75

Brand
Festo
Size
8
Drive System
pneumatic
Mass Inertia
0,01712
Material Note
RoHs compliant
Fastening Type
with female thread
Gripper Function
Parallel
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
POM
Position Detection
without
Construction Set Up
Inclined plane
Pneumatic Connection
M3
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
without
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
closed
Operating Pressure (bar)
4 to 8
Rotational Symmetry (mm)
0,15
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,05
Stroke Per Gripper Jaw (mm)
2
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,03
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Working Frequency Gripper (Hz)
4
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
10
Max. Mass Per External Griper Finger (g)
5
Max. Torque On Gripper Jaws Mx Static (Nm)
0,1
Max. Torque On Gripper Jaws My Static (Nm)
0,1
Max. Torque On Gripper Jaws Mz Static (Nm)
0,1
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,5
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
4,1
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
1,9
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
16
Gripper Force Per Gripper Jaw, Opening, 0.6 MPa (6 bar, 87 psi) (N)
8
EAN
4052568160616
Manufacturer
Festo
