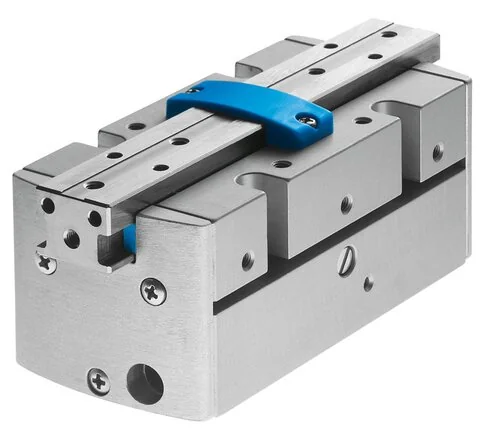

Festo - HGPP-20-A-G2-187875 - Parallel Gripper

SKU: festo-hgpp-20-a-g2-187875

Browse all parts
Festo - HGPP-20-A-G2-187875 - Parallel Gripper

€1,658.95€1,417.91 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,658.95

Brand
Festo
Size
20
Drive System
pneumatic
Mass Inertia
6,27
Material Note
RoHs compliant
Fastening Type
with female thread
Gripper Function
Parallel
Housing Material
Aluminium wrought alloy, hard anodised
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
POM
Position Detection
For inductive sensors
Construction Set Up
Toothed rack/pinion
Pneumatic Connection
M5
Gripper Jaws Material
Alu-Knetlegierung, vernickelt
Gripping Force Safety
When closing
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
5 to 8
Rotational Symmetry (mm)
0,05
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,02
Stroke Per Gripper Jaw (mm)
7,5
Max. Exchange Precision (mm)
0,1
Max. Gripper Jaw Play Sz (mm)
0
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Working Frequency Gripper (Hz)
4
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
220
Max. Mass Per External Griper Finger (g)
200
Max. Torque On Gripper Jaws Mx Static (Nm)
14,0
Max. Torque On Gripper Jaws My Static (Nm)
14,0
Max. Torque On Gripper Jaws Mz Static (Nm)
14,0
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
58
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
62
EAN
4052568148348
Manufacturer
Festo
