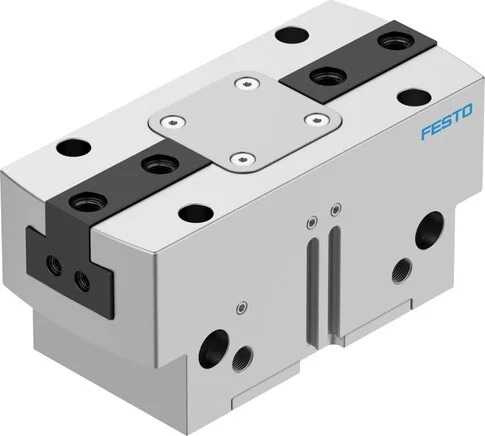

Festo - HGPT-63-A-B-F-560231 - Parallel Gripper

SKU: festo-hgpt-63-a-b-f-560231

Browse all parts
Festo - HGPT-63-A-B-F-560231 - Parallel Gripper

€2,001.50€1,710.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,001.50

Brand
Festo
Size
63
Drive System
pneumatic
Mass Inertia
60,903
Material Note
RoHs compliant
Fastening Type
With Female thread and dowel pin
Gripper Function
Parallel
Housing Material
Anodized aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
High-alloyed stainless steels
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Protection Category
IP40
Pneumatic Connection
G1/8
Gripper Jaws Material
Stahl, gehärtet
Gripping Force Safety
without
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
3 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,05
Stroke Per Gripper Jaw (mm)
8
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,02
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pneumatic Connection Blocking Air
M5
Lubrication Interval Guide Elements
5
Max. Working Frequency Gripper (Hz)
2
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Pressure Blocking Air (bar)
0 to 0.5
Max. Force On Gripper Jaws Fz Static (N)
5.000
Max. Mass Per External Griper Finger (g)
1.260
Max. Torque On Gripper Jaws Mx Static (Nm)
160
Max. Torque On Gripper Jaws My Static (Nm)
180
Max. Torque On Gripper Jaws Mz Static (Nm)
140
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,1
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
152
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
143
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
3522
Total Gripping Force, Opening, 0.6MPa (6bar, 87 psi) (N)
3770
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
1791
Gripper Force Per Gripper Jaw, Opening, 0.6 MPa (6 bar, 87 psi) (N)
1885
EAN
4052568206963
Manufacturer
Festo
