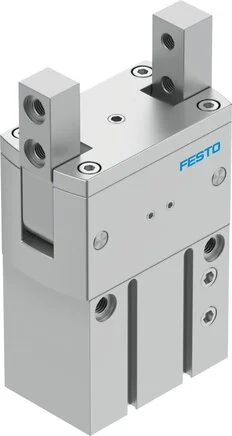

Festo - HGRT-40-A-563912 - Radial Gripper

SKU: festo-hgrt-40-a-563912

Browse all parts
Festo - HGRT-40-A-563912 - Radial Gripper

€1,368.43€1,169.60 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,368.43

Brand
Festo
Size
40
Mass Inertia
13,87
Material Note
RoHs compliant
Fastening Type
with female threads and centring sleeve
Gripper Function
radial
Housing Material
Aluminium-Knetlegierung, gleiteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For inductive sensors
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
G1/8
Gripper Jaws Material
Stahl, gehärtet
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Max. Opening Angle (°)
180
Operating Pressure (bar)
3 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,02
Max. Exchange Precision (mm)
0,2
Corrosion Resistance Class KBK
1 - low corrosion stress
Lubrication Interval Guide Elements
10
Max. Working Frequency Gripper (Hz)
2
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
400
Max. Torque On Gripper Jaws My Static (Nm)
17,5
Max. Torque On Gripper Jaws Mz Static (Nm)
1,6
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,1
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
320
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
283
Total Gripper Torque, Closing, 0.6 MPa (6 bar, 87 psi) (Ncm)
3.526
Total Gripping Torque At 0.6 MPa (6 bar, 87 psi), Opening (Ncm)
3.892
EAN
4052568211127
Manufacturer
Festo
