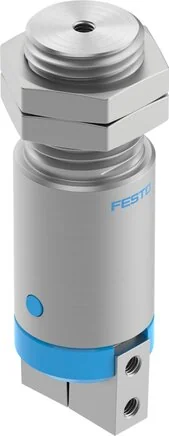

Festo - HGWM-12-EZ-G7-185703 - Angular Gripper

SKU: festo-hgwm-12-ez-g7-185703

Browse all parts
Festo - HGWM-12-EZ-G7-185703 - Angular Gripper

€289.81€247.70 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€289.81

Brand
Festo
Size
12
Mass Inertia
267
Fastening Type
With locking nut
Gripper Function
elbow
Housing Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Cover Cap Material
POM
Position Detection
without
Construction Set Up
Inclined plane
Pneumatic Connection
M3
Gripper Jaws Material
High-alloyed steel
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
closed
Max. Opening Angle (°)
14,0
Operating Pressure (bar)
2 to 8
Ambient Temperature (°C)
5 to 60
Spring Force Torque (Ncm)
0,015
Repeatability Grippers (mm)
0,02
Max. Gripper Jaw Play Sz (mm)
0,03
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Working Frequency Gripper (Hz)
4
Max. Force On Gripper Jaws Fz Static (N)
20
Max. Mass Per External Griper Finger (g)
1.000
Max. Torque On Gripper Jaws Mx Static (Ncm)
0,4
Max. Torque On Gripper Jaws My Static (Ncm)
0,4
Max. Torque On Gripper Jaws Mz Static (Ncm)
0,4
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,5
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
2,8
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
1,7
Mass Moment Of Inertia Per External Gripper Finger
560
Total Gripping Torque At 0.6 MPa (6 bar, 87 psi), Opening (Ncm)
76
EAN
4052568144678
Manufacturer
Festo
