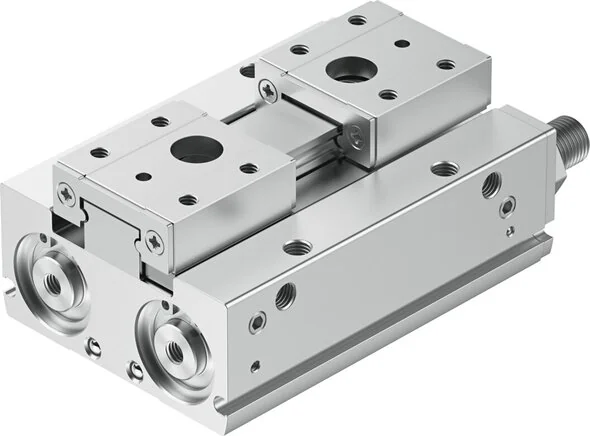

Festo - HPPF-20-20-A-S-8143425 - Parallel Gripper

SKU: festo-hppf-20-20-a-s-8143425

Browse all parts
Festo - HPPF-20-20-A-S-8143425 - Parallel Gripper

€576.86€493.04 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€576.86

Brand
Festo
Size
20
Guide
Kugelführung
Dampening
elastische Dämpfungsringe/-platten beidseitig
Drive System
pneumatic
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, eloxiert
Fastening Type
Direktbefestigung über Gewinde
O-ring Material
NBR
Screws Material
Steel, powder-coated
Gripper Function
Parallel
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Total Stroke (mm)
20
Cover Cap Material
Aluminium-Knetlegierung, eloxiert
End Plate Material
High-alloyed stainless steels
Gear Rack Material
High-alloyed stainless steels
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Max. Torque Mx (Nm)
6
Max. Torque My (Nm)
3
Max. Torque Mz (Nm)
3
Pneumatic Connection
M5
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
without
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-Zone III
Material - Piston Seal
TPE-U(PU)
Principle Of Operation
double acting
Operating Pressure (MPa)
0,1 to 0,7
Ambient Temperature (°C)
-10 to 60
Repeatability Grippers (mm)
0,06
Stroke Per Gripper Jaw (mm)
10
Max. Gripper Jaw Play Sz (mm)
0
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Working Frequency Gripper (Hz)
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
320
Max. Mass Per External Griper Finger (g)
625
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
70
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
90
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
346,6
Total Gripping Force, Opening, 0.6MPa (6bar, 87 psi) (N)
346,6
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
173,3
Gripper Force Per Gripper Jaw, Opening, 0.6 MPa (6 bar, 87 psi) (N)
173,3
EAN
4052568586362
Manufacturer
Festo
