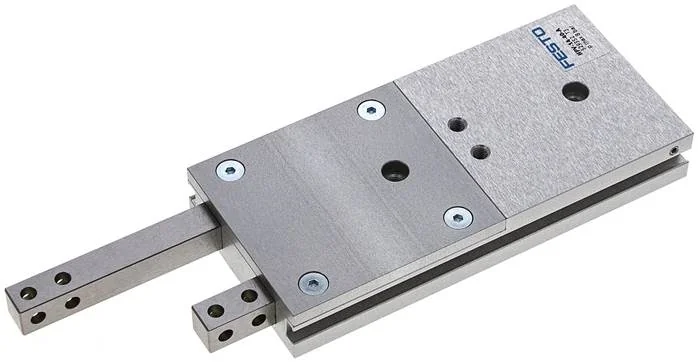

Festo - HPV-14-40-A-529352 - Separator

SKU: festo-hpv-14-40-a-529352

Browse all parts
Festo - HPV-14-40-A-529352 - Separator

€1,072.33€916.52 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,072.33

Brand
Festo
Dampening
No dampening
Stroke (mm)
40
Cover Material
High-alloyed steel
Fastening Type
mit Innengewinde M5 und Zentrierhülse
Piston Ø (mm)
14
Seals Material
NBR
Cycle Time (ms)
468,4
Half Cycle (ms)
234,2
Housing Material
Aluminium-Knetlegierung, gleiteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Plunger Material
High-alloyed steel
Position Detection
For proximity switch
Construction Set Up
non-rotating
Extension Time (ms)
0,05 to 0,13
Piston Rod Material
High-alloyed steel
Protection Category
IP40
Pneumatic Connection
M5
Retraction Time (ms)
0,05 to 0,13
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Locking Slide Material
Case-hardening steel
Max. Tightening Torque
5,9 Nm bei M5
Principle Of Operation
double acting
Alternative Connections
M5
Anti-twist Lock / Guide
Square guide
Max. Tappet Play Sx (mm)
0,05
Max. Tappet Play Sz (mm)
0,03
Operating Pressure (bar)
3 to 8
Ambient Temperature (°C)
5 to 60
Fastening External Finger
throughway bores
Max. Exchange Precision (mm)
0,3
Max. Gripper Jaw Play Ax (°)
0,07
Max. Gripper Jaw Play Ay (°)
0,12
Max. Gripper Jaw Play Az (°)
0,175
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Proximity Switch Protrusion (mm)
14 to 22
Max. Torque On Finger Mr Static (Nm)
5
Max. Torque On Finger Mx Static (Nm)
5
Max. Torque On Finger My Static (Nm)
5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On The Finger Fz Static (N)
100
Max. Mass Per External Griper Finger (g)
150
Minimum Product Distance Due To Proximity Switches (mm)
54 to 59
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
75
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
90
EAN
4052568163945
Manufacturer
Festo
