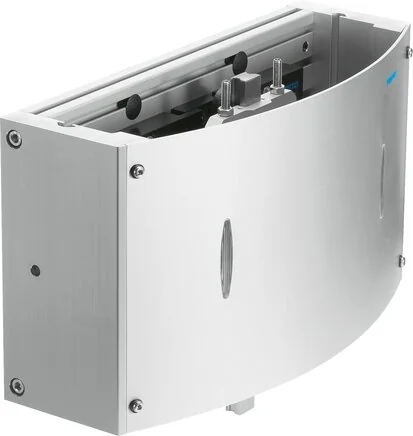

Festo - HSP-12-AP-SD-WL-533602 - Handling Module

SKU: festo-hsp-12-ap-sd-wl-533602

Browse all parts
Festo - HSP-12-AP-SD-WL-533602 - Handling Module

€4,008.17€3,425.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,008.17

Brand
Festo
Size
12
Dampening
weiche Kennlinie
bar Material
eloxiert
Y-stroke (mm)
52 to 68
Z-stroke (mm)
20 to 30
Cover Material
Aluminium-Knetlegierung, eloxiert
Fastening Type
With Cap nuts
Bracket Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Stoppers Material
High-alloyed steel
Position Detection
For proximity switch
Repeatability (mm)
±0.01
Base Plate Material
Aluminium wrought alloy
Construction Set Up
Force controlled movement cycle
Min. Cycle Time (s)
0,6
Side Parts Material
Aluminium wrought alloy
Backgrounds Material
brüniert
Cross-guide Material
Quenched and tempered steel
Fastening Front Unit
With throughway bores
Pneumatic Connection
M5
Sensor Rail Material
eloxiert
Installation Position
vertical
Swivel Lever Material
brüniert
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Anti-twist Lock / Guide
Cross-guide
Max. Effective Load (kg)
0,5
Operating Pressure (bar)
4 to 8
Ambient Temperature (°C)
0 to 60
Max. Torque Mx Static (Nm)
5
Max. Torque My Static (Nm)
5
Max. Torque Mz Static (Nm)
5
Positioning Screw Material
High-alloyed steel
Max. Torque Mx Dynamic (Nm)
1,1
Max. Torque My Dynamic (Nm)
1,1
Max. Torque Mz Dynamic (Nm)
1,1
Z Stroke, Working Stroke (mm)
15
Spring Pressure Piece Material
High-alloyed steel
Max. Z Stroke Waiting Position (mm)
15
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Process Force In Y Direction (N)
30
Pneumatic Connection Calibration Position
M3
Theoretical Force At 0.6 MPa (6 bar, 87 psi) (N)
40
EAN
4052568167578
Manufacturer
Festo
