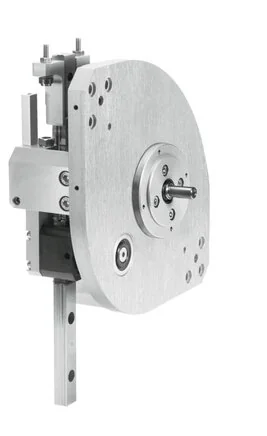

Festo - HSW-12-AS-540232 - Handling Module

SKU: festo-hsw-12-as-540232

Festo - HSW-12-AS-540232 - Handling Module

€3,780.67€3,231.34 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,780.67

Brand
Festo
Size
12
Dampening
Silencer above buffer
bar Material
eloxiert
Z-stroke (mm)
80 to 100
Fastening Type
With Throughway bore and centring sleeve
Bracket Material
eloxiert
Stoppers Material
High-alloyed steel
Position Detection
For proximity switch
Base Plate Material
eloxiert
Construction Set Up
Force controlled movement cycle
Max. Torque Mx (Nm)
1,5
Max. Torque My (Nm)
1,5
Max. Torque Mz (Nm)
1,5
Working Stroke (mm)
15 to 25
Backgrounds Material
gehärtet
Cross-guide Material
Quenched and tempered steel
Sensor Rail Material
eloxiert
Installation Position
arbitrary
Swivel Lever Material
brüniert
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Effective Load (kg)
1
Ambient Temperature (°C)
0 to 60
Positioning Screw Material
High-alloyed steel
Spring Pressure Piece Material
High-alloyed steel
Repeatability End Positions (mm)
±0.02
Max. Radial Force On Drive Shaft (N)
45
Max. Process Force In Y Direction (N)
35
Max. Axial Force On The Drive Shaft (N)
18
Max. Linear Stroke At 90° Swivel Angle
142/142 mm
Max. Actuator Torque On Drive Shaft (Nm)
12,25
EAN
4052568178819
Manufacturer
Festo
