Festo - ISV-M6-545997 - Vacuum Suction Valve

SKU: festo-isv-m6-545997

Browse all parts

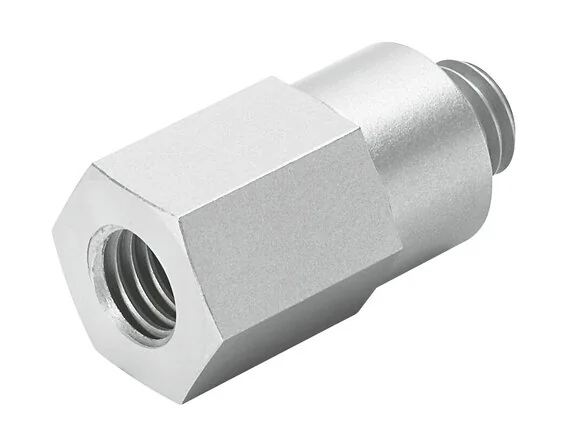

Festo - ISV-M6-545997 - Vacuum Suction Valve

€46.37€39.63 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€46.37

Brand
Festo
Size
M6
Fastening Type
Screwable
Float Material
POM
Filter Material
sintered bronze
Spring Material
High-alloyed steel
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Operating Pressure
-0,095 to 0
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M6
Pneumatic Connection 2
M6
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Ejection Impulse Plausibility (MPa)
0,8
Required Suction Volumetric Flow At -0.05 MPa (-0.5 bar, -7.25 psi)
2,0
EAN
4052568092009
Manufacturer
Festo
