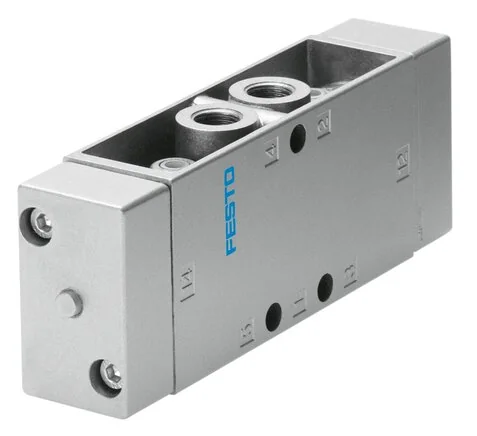

Festo - JH-5-1/4-NPT-10879 - Pneumatic Valve

SKU: festo-jh-5-1-4-npt-10879

Browse all parts
Festo - JH-5-1/4-NPT-10879 - Pneumatic Valve

€208.07€177.84 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€208.07

Brand
Festo
Overlap
negative Überdeckung
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
TPE-U(PU)
Valve Function
5/2 bistable
Build Width (mm)
30,5
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
7
Shifting Time (ms)
7
Construction Set Up
Plate seat
Protection Category
IP65
Pitch Dimension (mm)
32
Installation Position
arbitrary
Control Pressure (MPa)
0,12 to 1
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
1/4 NPT
Pneumatic Connection 2
1/4 NPT
Pneumatic Connection 3
1/4 NPT
Pneumatic Connection 4
1/4 NPT
Pneumatic Connection 5
1/4 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0 to 0.8
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-20 to 60
Control Air 12 Connection
1/8 NPT
Control Air 14 Connection
1/8 NPT
Max. Switching Frequency (Hz)
12
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
1100
EAN
4052568303747
Manufacturer
Festo
