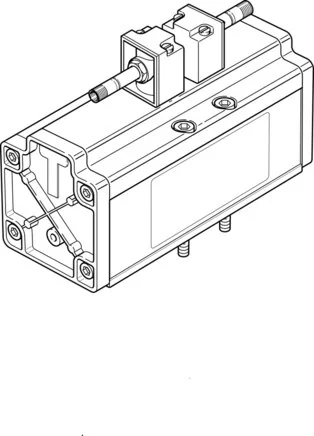

Festo - JMDH-5/2-3/4-D-4-14545 - Solenoid Valve

SKU: festo-jmdh-5-2-3-4-d-4-14545

Browse all parts
Festo - JMDH-5/2-3/4-D-4-14545 - Solenoid Valve

€832.96€711.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€832.96

Brand
Festo
Overlap
positive Überdeckung
ISO-Code
455
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With Throughway bore and screw
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/2 bistable
Build Width (mm)
76
Exhaust Function
Can be throttled
Housing Material
Aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
18
Shifting Time (ms)
40
Construction Set Up
Piston pusher
Protection Category
IP65
Complies To Standard
ISO 5599-1
Pitch Dimension (mm)
82
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 4 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 4 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 4 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 4 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 4 to ISO 5599-1
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
2 to 16
Ambient Temperature (°C)
-10 to 50
Sound Pressure Level (dB(A))
85
Exhaust Control Connection 82
M5
Exhaust Control Connection 84
M5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
6000
EAN
4052568112523
Manufacturer
Festo
