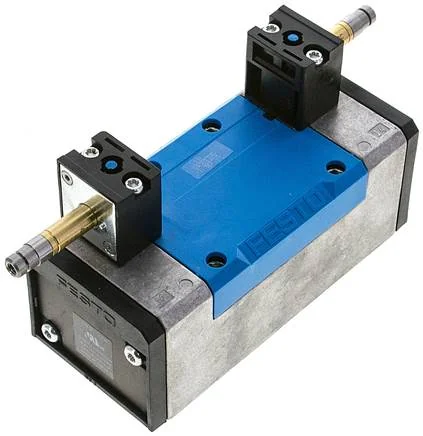

Festo - JMN1H-5/2-D-3-C-159714 - Solenoid Valve

SKU: festo-jmn1h-5-2-d-3-c-159714

Browse all parts
Festo - JMN1H-5/2-D-3-C-159714 - Solenoid Valve

€388.33€331.91 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€388.33

Brand
Festo
Overlap
positive Überdeckung
ISO-Code
355
Permission
c UL us - Recognized (OL)
Control Type
pilot operated
Actuation Type
Electrical
Fastening Type
on connection plate, With Throughway bore and screw
Flow Direction
Not reversible
Seals Material
HNBR, NBR
Valve Function
5/2 bistable
Build Width (mm)
65
Exhaust Function
Can be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
14,5
Shifting Time (ms)
21
Construction Set Up
Piston pusher
Protection Category
IP65
Complies To Standard
ISO 5599-1
Material Information
RoHs compliant
Aluminium die casting
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
71
Electrical Connection
Via N1 coil, order separately
Hand Assist Actuation
With Accessories ratcheting, tentative
Installation Position
arbitrary
Pneumatic Connection 1
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 3 to ISO 5599-1
Maritime Classification
see Certificate
Operating Pressure (bar)
2 to 10
Ambient Temperature (°C)
-5 to 50
Exhaust Control Connection 82
M5
Exhaust Control Connection 84
M5
Max. Positive Test Impulse At 0 Signal (µs)
3.700
Max. Negative Test Impulse For 1 Signal (µs)
4.600
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343) (l/min)
4.500
EAN
4052568012137
Manufacturer
Festo
