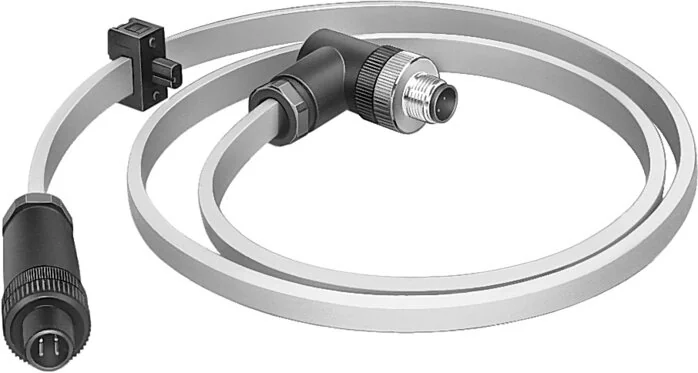

Material Note
RoHs compliant
Line Designation
Without sign holder
Cable Shield Colour
yellow
Construction Set Up
T-distributor with cable both sides
Additional Functions
Anschluss des Programmiergerätes an eine AS-Interface Komponente über AS-I Flachkabel.
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
Rubber mixture
LABS (PWIS) Conformity
VDMA24364-B2-L
Ambient Temperature (°C)
-40 to 85
Surge Voltage Strength (kV)
0,5
Operating Voltage Range AC (V)
0 to 48
Operating Voltage Range DC (V)
0 to 48
Electrical Connection 1, Design
Angular
Electrical Connection 2, Design
round
Electrical Connection 3, Design
round
Conductor - Nominal Cross-section
1,5
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Field device screen
Electrical Connection 3, Function
Control screen
Electrical Connection 1, Cable Output
Angled
Electrical Connection 2, Cable Output
straight
Electrical Connection 3, Cable Output
Angled
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
3
Electrical Connection 1, Fastening Type
plugged
Electrical Connection 2, Fastening Type
plugged
Electrical Connection 3, Fastening Type
plugged
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
socket / container / ….
Electrical Connection 3, Connection Type
Plug
Electrical Connection 1, Connection Pattern
995700
Electrical Connection 2, Connection Pattern
995614
Electrical Connection 3, Connection Pattern
995746
Electrical Connection 1, Occupied Pin / Wire
2
Electrical Connection 2, Occupied Pin / Wire
2
Electrical Connection 3, Occupied Pin / Wire
2
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
As interface
Electrical Connection 2, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 3, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
2
Electrical Connection 2, Number Of Pins / Wires
4
Electrical Connection 3, Number Of Pins / Wires
4
Ambient Temperature For Moving Cable Placements (°C)
-25 to 80
