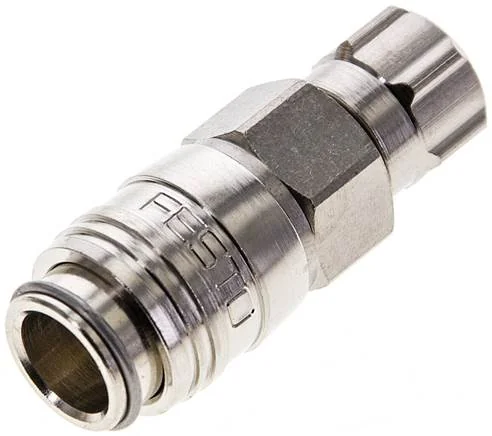

Festo - KD3-CK-4-531629 - Coupling Socket

SKU: festo-kd3-ck-4-531629

Browse all parts
Festo - KD3-CK-4-531629 - Coupling Socket

€23.18€19.81 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€23.18

Brand
Festo
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Seals Material
NBR
Spring Material
High-alloyed stainless steels
Circlip Material
High-alloyed stainless steels
Housing Material
brass, nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
2,9
Valve Body Material
Brass
Locking Nut Material
Aluminium-Knetlegierung, eloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
für Stecknippel Innen-Ø 4 mm mit Überwurfmutter
Ambient Temperature (°C)
-10 to 60
Material Releasing Sleeve
brass, nickel-plated
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
Nominal Flow Rate Standardised According To ISO 8778
171,3 to 243,9
Standard Nominal Flow Rate (Standardised To DIN 1343)
158 to 225
EAN
4052568047566
Manufacturer
Festo
