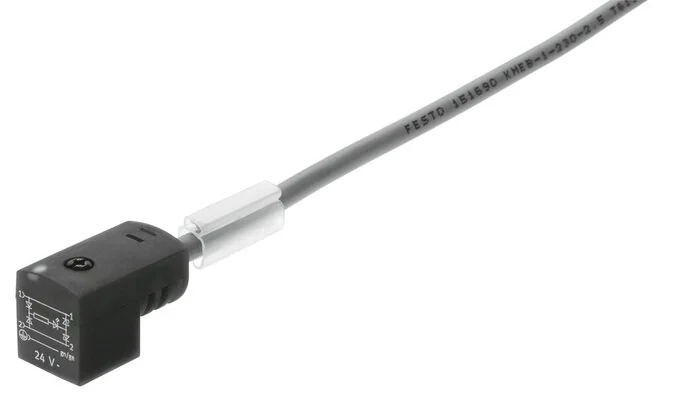

Festo - KME-1-24-2.5-LED-30943 - Socket Cable

SKU: festo-kme-1-24-2-5-led-30943

Browse all parts
Festo - KME-1-24-2.5-LED-30943 - Socket Cable

€52.69€45.03 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€52.69

Brand
Festo
Cable Set Up
2 x 0,75 mm²
Fastening Type
on solenoid valve with central screw M3
Seals Material
NBR
Line Properties
For static applications
Cable Length (m)
2,5
Housing Material
TPE-U(PU)
Cable Diameter (mm)
5,2
Protection Category
acc. to IEC 60529
Cable Sleeve Material
PVC
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Kupfer-Legierung versilbert
Electrical Connection 1
Angled socket, Square shape, 3 pin, C shape
Electrical Connection 2
Open end, 2-wire
Signal Condition Display
LED yellow
Tolerance Cable Diameter
± 0,1 mm
Ambient Temperature (°C)
-20 to 80
Protection Line Connection
Not available
Corrosion Resistance Class KBK
1 - low corrosion stress
Min. Cable Bending Radius (mm)
52
Nominal Operating Voltage DC (V)
24
Current Carrying Capacity At 40 °C (A)
4
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568003791
Manufacturer
Festo
