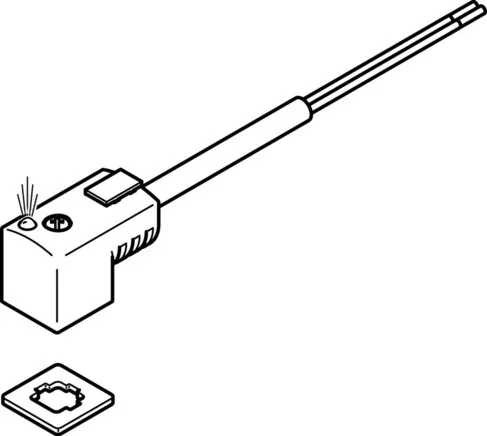

Festo - KMEB-3-24-5-LED-547269 - Socket Cable

SKU: festo-kmeb-3-24-5-led-547269

Browse all parts
Festo - KMEB-3-24-5-LED-547269 - Socket Cable

€29.17€24.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€29.17

Brand
Festo
Wire Ends
Wire end sleeve
Cable Set Up
2 x 0,75 mm²
Seals Material
NBR
Line Properties
Standard
Cable Length (m)
5
Housing Material
PC
Cable Diameter (mm)
5,2
Protection Category
acc. to IEC 60529
Cable Sleeve Material
PVC
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Kupfer-Legierung versilbert
Degree Of Contamination
3
Electrical Connection 1
Socket, according to EN 175301-803, Form C
Signal Condition Display
LED yellow
Ambient Temperature (°C)
-20 to 80
Protection Line Connection
Not available
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
1 - low corrosion stress
Electrical Connection 1, Design
Angular
Nominal Operating Voltage DC (V)
24
Electrical Connection 1, Cable Output
Angled
Electrical Connection 1, Fastening Type
on solenoid valve with central screw M2,5
Electrical Connection 1, Connection Type
socket / container / ….
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Electrical Connection 1, Note On Cable Outlet
90°
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
2
Electrical Connection 2, Number Of Pins / Wires
2
EAN
4052568051372
Manufacturer
Festo
