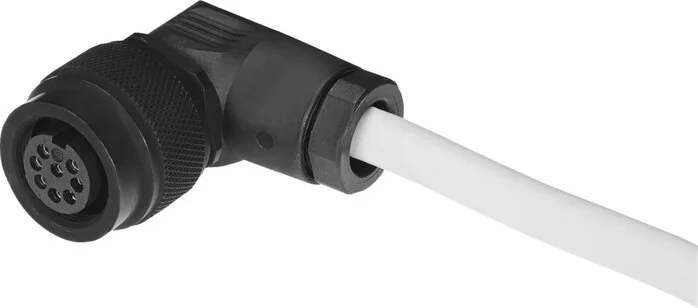

Festo - KMPPE-B-2,5-161879 - Socket Cable

SKU: festo-kmppe-b-2-5-161879

Browse all parts
Festo - KMPPE-B-2,5-161879 - Socket Cable

€130.50€111.54 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€130.50

Brand
Festo
Shielding
yes
Wire Ends
Cut dull
Cable Set Up
8 x 0,25 mm²
Material Note
RoHs compliant
Line Properties
Standard
Cable Length (m)
2,5
Housing Material
PA
Line Designation
With Accessories
Cable Diameter (mm)
6,8
Cable Shield Colour
Grey
Protection Category
IP67
Screw Lock Material
PA
Connection Frequency
500
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
PVC
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Degree Of Contamination
1
Ambient Temperature (°C)
-30 to +80
Surge Voltage Strength (kV)
0,6
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Conductor - Nominal Cross-section
0,25
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
Angled
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
5
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Electrical Connection 1, Connection Pattern
995734
Electrical Connection 1, Occupied Pin / Wire
8
Electrical Connection 2, Occupied Pin / Wire
8
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M16x0.75 acc. to EN 61076-2-106
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
8
Electrical Connection 2, Number Of Pins / Wires
8
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568072131
Manufacturer
Festo
