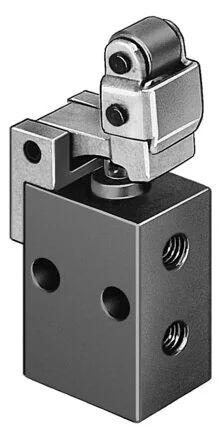

Festo - L-3-M5-3628 - Tilt Roller Valve

SKU: festo-l-3-m5-3628

Browse all parts
Festo - L-3-M5-3628 - Tilt Roller Valve

€115.46€98.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€115.46

Brand
Festo
Control Type
Direct
Actuation Type
Mechanical
Fastening Type
With throughway bores
Seals Material
NBR
Valve Function
3/2 closed monostable
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Nominal Width (mm)
2
Actuating Force (N)
16,5
Construction Set Up
Plate seat
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
M5
Operating Pressure (bar)
-0.95 to 8
Ambient Temperature (°C)
-10 to 60
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
80
EAN
4052568064402
Manufacturer
Festo
