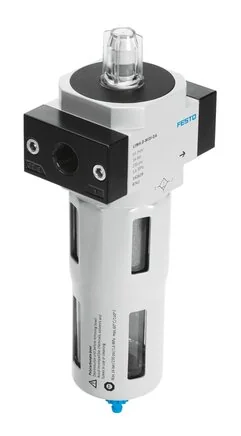

Festo - LFMA-3/4-D-MAXI-DA-A-532861 - Fine Filter

SKU: festo-lfma-3-4-d-maxi-da-a-532861

Browse all parts
Festo - LFMA-3/4-D-MAXI-DA-A-532861 - Fine Filter

€650.92€556.34 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€650.92

Brand
Festo
MPPS
0,05
Size
Maxi
Model Series
D
Material Note
RoHs compliant
Fastening Type
With Accessories
Clamps Material
PC
Filter Material
Borosilicate fibre
Filter Porosity
0,01
Clamp Protection
Metal protection basket
Condensate Drain
Fully automatic
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Construction Set Up
Fibre filter
Residual Oil Content
0,01
Installation Position
vertical ± 5°
Filter Efficiency MPPS
99,95
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/4
Pneumatic Connection 2
G3/4
Filter Effective Degree
99,9999
Medium Temperature (°C)
1.5 to 60
Operating Pressure (bar)
0,2 to 1,2
Ambient Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Filter Efficiency, Oil Aerosol
99
Differential Pressure Indicator
Visual display
Filter Efficiency, Fine Particles
99.995
Min. Normal Flow For Air Unit Class
500
Max. Normal Flow For Air Purity Class
1900
EAN
4052568165970
Manufacturer
Festo
