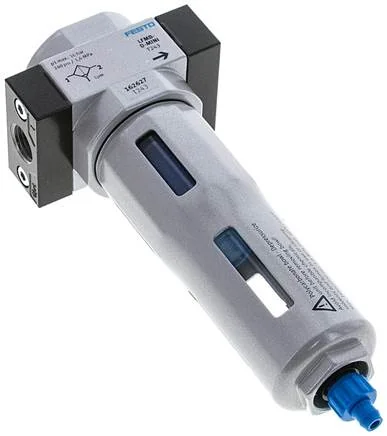

Festo - LFMB-1/4-D-MINI-162627 - Fine Filter

SKU: festo-lfmb-1-4-d-mini-162627

Browse all parts
Festo - LFMB-1/4-D-MINI-162627 - Fine Filter

€148.63€127.03 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€148.63

Brand
Festo
Size
Mini
Model Series
D
Material Note
RoHs compliant
Fastening Type
With Accessories
Clamps Material
PC
Filter Material
Borosilicate fibre
Filter Porosity
1
Clamp Protection
Metal protection basket
Condensate Drain
Manually rotating
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Construction Set Up
Fibre filter
Residual Oil Content
0,5
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Condensate Amount
22,000
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Filter Effective Degree
99,99
Medium Temperature (°C)
1.5 to 60
Operating Pressure (bar)
1 to 16
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Min. Normal Flow For Air Unit Class
150
Max. Normal Flow For Air Purity Class
650
EAN
4052568072360
Manufacturer
Festo
