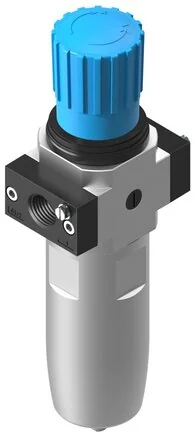

Festo - LFR-1/2-D-5M-O-DI-MAXI-A-192389 - Filter Regulating Valve

SKU: festo-lfr-1-2-d-5m-o-di-maxi-a-192389

Browse all parts
Festo - LFR-1/2-D-5M-O-DI-MAXI-A-192389 - Filter Regulating Valve

€528.66€451.85 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€528.66

Brand
Festo
Size
Maxi
Model Series
D
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
pipe installation
Clamps Material
PC
Filter Porosity
5
Clamp Protection
Metal protection basket
Condensate Drain
Fully automatic
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Pressure Display
G1/4 prepared
Construction Set Up
Filter regulator without pressure gauge
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Condensate Amount
43,000
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Medium Temperature (°C)
5 to 60
Operating Pressure (MPa)
0,2 to 1,2
Ambient Temperature (°C)
5 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Max. Pressure Hysteresis (bar)
0,04
Pressure Regulation Range (bar)
0.5 to 12
Standard Nominal Flow Rate (Standardised To DIN 1343)
4000
EAN
4052568151256
Manufacturer
Festo
