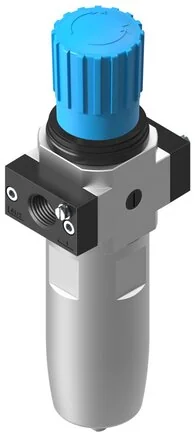

Festo - LFR-1/4-D-5M-MINI-NPT-173768 - Filter Regulating Valve

SKU: festo-lfr-1-4-d-5m-mini-npt-173768

Browse all parts
Festo - LFR-1/4-D-5M-MINI-NPT-173768 - Filter Regulating Valve

€175.68€150.15 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€175.68

Brand
Festo
Size
Mini
Model Series
D
Material Note
RoHs compliant
Fastening Type
With mounting bracket
Clamps Material
PC
Filter Porosity
5
Clamp Protection
Metal protection basket
Condensate Drain
manuell tastend
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Installation Position
vertical
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Condensate Amount
22,000
Pneumatic Connection 1
1/4 NPT
Pneumatic Connection 2
1/4 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,1 to 1,6
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (bar)
0,2
Pressure Regulation Range (bar)
0.5 to 12
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
1200
EAN
4052568314385
Manufacturer
Festo
