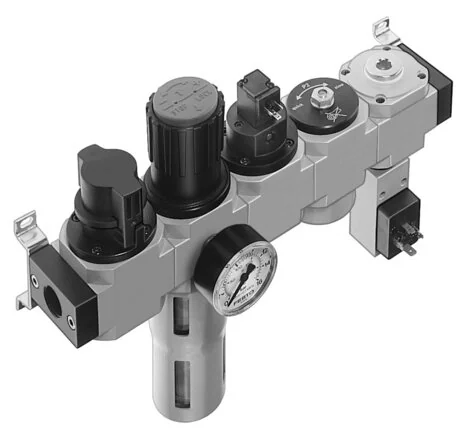

Festo - LFR-3/4-D-DI-MAXI-KG-A-192467 - Service Unit

SKU: festo-lfr-3-4-d-di-maxi-kg-a-192467

Browse all parts
Festo - LFR-3/4-D-DI-MAXI-KG-A-192467 - Service Unit

€1,772.27€1,514.76 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,772.27

Brand
Festo
Size
Maxi
Model Series
D
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Clamps Material
PC
Filter Porosity
40
Clamp Protection
Metal protection basket
Condensate Drain
Fully automatic
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Construction Set Up
Sicherheitseinschaltventil
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Condensate Amount
43
Pneumatic Connection 1
G3/4
Pneumatic Connection 2
G3/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,3 to 1,2
Ambient Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pressure Regulation Range (MPa)
0,25 to 1,2
Standard Nominal Flow Rate (Standardised To DIN 1343)
3000
EAN
4052568152031
Manufacturer
Festo
