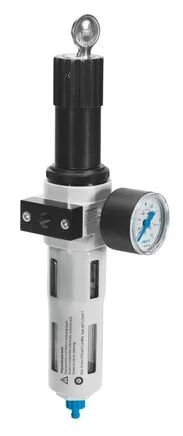

Festo - LFR-N1/4-D-O-MIDI-T3-EX4-5271801 - Filter Regulating Valve

SKU: festo-lfr-n1-4-d-o-midi-t3-ex4-5271801

Browse all parts
Festo - LFR-N1/4-D-O-MIDI-T3-EX4-5271801 - Filter Regulating Valve

€178.30€152.39 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€178.30

Brand
Festo
Size
Midi
Model Series
D
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Clamps Material
Aluminium wrought alloy
Filter Porosity
40
Clamp Protection
Integrated as metal bowl
Condensate Drain
Manually rotating
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Pressure Display
G1/4 prepared
ATEX Gas Category
II 2G
ATEX Dust Category
II 2D
Construction Set Up
Filter regulator without pressure gauge
Installation Position
vertical ± 5°
Ex Ambient Temperature
-40°C <= Ta <= +80°C
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Condensate Amount
42
Pneumatic Connection 1
1/4 NPT
Pneumatic Connection 2
1/4 NPT
Medium Temperature (°C)
-40 to 80
Operating Pressure (MPa)
0,1 to 2
Ambient Temperature (°C)
-40 to 80
Bearing Temperature (°C)
-40 to 80
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
3 - severe corrosion stress
Max. Pressure Hysteresis (MPa)
0,02
Ex Ignition Protection Type Gas
Ex h IIC T6 Gb X
Pressure Regulation Range (bar)
0.5 to 12
Ex Ignition Protection Type Dust
Ex h IIIC T85°C Db X
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
Standard Nominal Flow Rate (Standardised To DIN 1343)
2000
EAN
4052568422530
Manufacturer
Festo
