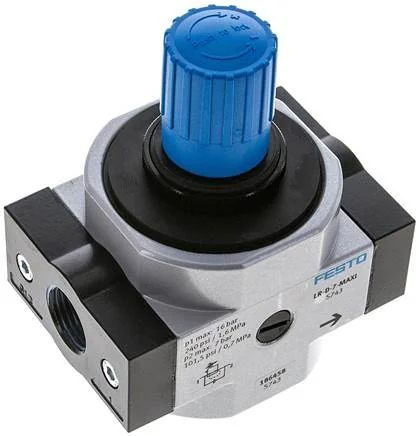

Festo - LR-1/2-D-7-O-MAXI-186458 - Pressure Regulating Valve

SKU: festo-lr-1-2-d-7-o-maxi-186458

Festo - LR-1/2-D-7-O-MAXI-186458 - Pressure Regulating Valve

€332.00€283.76 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€332.00

Brand
Festo
Size
Maxi
Model Series
D
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Pressure Display
G1/4 prepared
Construction Set Up
Pre-controlled piston control valve
Controller Function
With relieving
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0 to 1.6
Ambient Temperature (°C)
-10 to 60
Connection Plate Material
Zinc pressure cast
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (MPa)
0,04
Pressure Regulation Range (bar)
0.5 to 7
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
10700
EAN
4052568146634
Manufacturer
Festo
