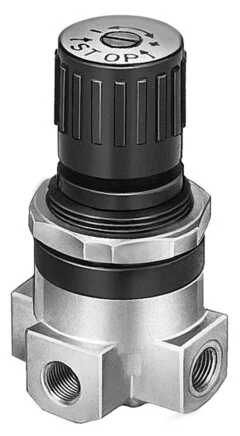

Festo - LR-1/8-F-552420 - Pressure Regulating Valve

SKU: festo-lr-1-8-f-552420

Festo - LR-1/8-F-552420 - Pressure Regulating Valve

€62.35€53.29 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€62.35

Brand
Festo
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Kupfer-Legierung
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Pressure Display
G1/8 prepared
Construction Set Up
mit durchgehender Druckversorgung
Controller Function
With relieving
Installation Position
arbitrary
Input Pressure 1 (bar)
1 to 20
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Medium Temperature (°C)
-10 to 80
Ambient Temperature (°C)
-10 to 80
Bearing Temperature (°C)
-10 to 80
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Pressure Hysteresis (bar)
0,2
Pressure Regulation Range (bar)
0.5 to 12
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
420
EAN
4052568357573
Manufacturer
Festo
