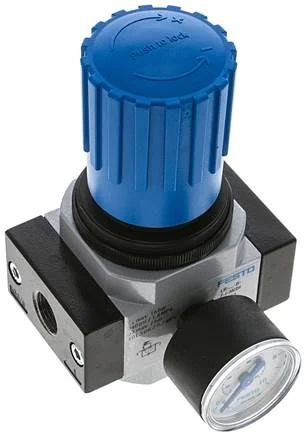

Festo - LR-3/4-D-MAXI-NPT-173668 - Pressure Regulating Valve

SKU: festo-lr-3-4-d-maxi-npt-173668

Festo - LR-3/4-D-MAXI-NPT-173668 - Pressure Regulating Valve

€335.71€286.93 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€335.71

Brand
Festo
Size
Maxi
Model Series
D
Material Note
RoHs compliant
Fastening Type
pipe installation
Seals Material
NBR
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Controller Function
Ausgangsdruck konstant
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
3/4 NPT
Pneumatic Connection 2
3/4 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
1,6
Ambient Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Max. Pressure Hysteresis (MPa)
0,04
Pressure Regulation Range (bar)
0.5 to 12
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
11500
EAN
4052568313388
Manufacturer
Festo
