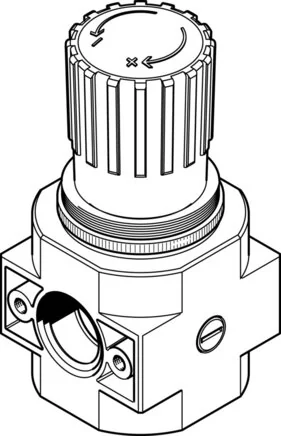

Festo - LR-D-7-MAXI-546465 - Base Valve

SKU: festo-lr-d-7-maxi-546465

Festo - LR-D-7-MAXI-546465 - Base Valve

€331.59€283.41 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€331.59

Brand
Festo
Size
Maxi
Model Series
D
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Pressure Display
G1/4 prepared
Construction Set Up
Pre-controlled piston control valve
Controller Function
With relieving
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0 to 1.6
Ambient Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (MPa)
0,04
Pressure Regulation Range (bar)
0.5 to 7
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
47605,93
EAN
4052568353292
Manufacturer
Festo
