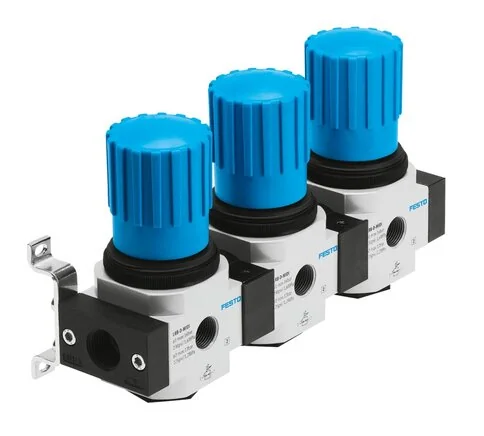

Festo - LRB-3/8-D-7-O-K3-MIDI-528972 - Pressure Regulating Valve Manifold

SKU: festo-lrb-3-8-d-7-o-k3-midi-528972

Browse all parts
Festo - LRB-3/8-D-7-O-K3-MIDI-528972 - Pressure Regulating Valve Manifold

€602.94€515.33 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€602.94

Brand
Festo
Size
Midi
Model Series
D
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Pressure Display
G1/4 prepared
Construction Set Up
mit durchgehender Druckversorgung
Controller Function
With relieving
Installation Position
arbitrary
Control Panel Material
PA
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/8
Pneumatic Connection 2
G3/8
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,1 to 1,6
Ambient Temperature (°C)
-10 to 60
Connection Plate Material
Zinc pressure cast
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Pressure Hysteresis (MPa)
0,02
Pressure Regulation Range (MPa)
0.05 to 0.7
Standard Nominal Flow Rate (Standardised To DIN 1343)
3800
EAN
4052568163228
Manufacturer
Festo
