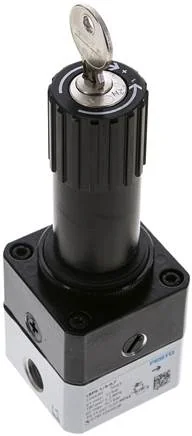

Festo - LRPS-1/4-0,7-194690 - Precision Pressure Regulating Valve

SKU: festo-lrps-1-4-0-7-194690

Browse all parts
Festo - LRPS-1/4-0,7-194690 - Precision Pressure Regulating Valve

€489.15€418.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€489.15

Brand
Festo
Material Note
RoHs compliant
Actuation Fuse
Rotary button with integrated lock
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Aluminium
Operating Medium
Inerte Gase
Pressure Display
G1/8 prepared
Construction Set Up
Pre-control precision membrane control valve
Controller Function
With relieving
Installation Position
arbitrary
Input Pressure 1 (bar)
1 to 12
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,1 to 1,2
Ambient Temperature (°C)
-10 to 60
Max. Pressure Hysteresis (bar)
0,02
Pressure Regulation Range (bar)
0.05 to 0.7
Note On Operating And Control Medium
Oiled operation not possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
800
EAN
4052568154226
Manufacturer
Festo
