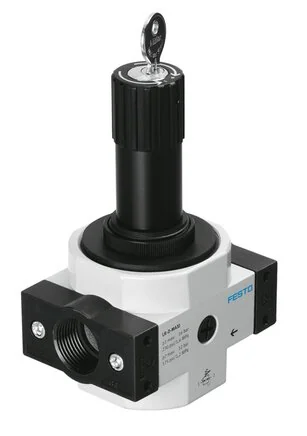

Festo - LRS-1/4-D-7-O-I-MIDI-194633 - Pressure Regulating Valve

SKU: festo-lrs-1-4-d-7-o-i-midi-194633

Browse all parts
Festo - LRS-1/4-D-7-O-I-MIDI-194633 - Pressure Regulating Valve

€387.16€330.91 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€387.16

Brand
Festo
Size
Midi
Model Series
D
Material Note
RoHs compliant
Actuation Fuse
Rotary button with integrated lock
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Pressure Display
G1/4 prepared
Construction Set Up
Directly controlled membrane control valve
Controller Function
mit Rückstromverhalten
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0 to 1.6
Ambient Temperature (°C)
-10 to 60
Connection Plate Material
Zinc pressure cast
Air Purity Class At The Output
Inerte Gase
Max. Pressure Hysteresis (MPa)
0,02
Pressure Regulation Range (bar)
0.5 to 7
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
2200
EAN
4052568153700
Manufacturer
Festo
