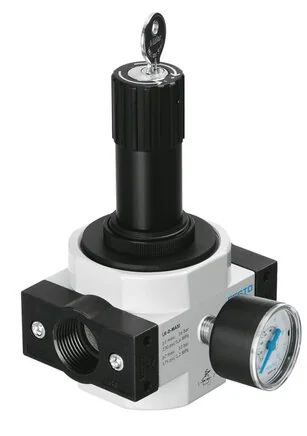

Festo - LRS-3/8-D-I-MINI-194619 - Pressure Regulating Valve

SKU: festo-lrs-3-8-d-i-mini-194619

Browse all parts
Festo - LRS-3/8-D-I-MINI-194619 - Pressure Regulating Valve

€333.04€284.65 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€333.04

Brand
Festo
Size
Mini
Model Series
D
Material Note
RoHs compliant
Actuation Fuse
Rotary button with integrated lock
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Construction Set Up
Directly controlled membrane control valve
Controller Function
mit Rückstromverhalten
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/8
Pneumatic Connection 2
G3/8
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,1 to 1,6
Ambient Temperature (°C)
-10 to 60
Connection Plate Material
Zinc pressure cast
Air Purity Class At The Output
Inerte Gase
Max. Pressure Hysteresis (MPa)
0,02
Pressure Regulation Range (bar)
0.5 to 12
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
1700
EAN
4052568153571
Manufacturer
Festo
