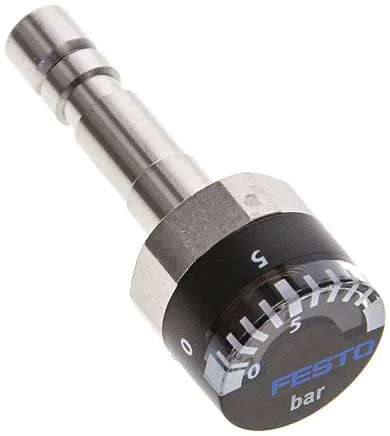

Festo - MA-15-10-QS-6-153384 - Pressure Gauge

SKU: festo-ma-15-10-qs-6-153384

Browse all parts
Festo - MA-15-10-QS-6-153384 - Pressure Gauge

€47.41€40.52 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€47.41

Brand
Festo
Scale
bar (außen)
Material Note
RoHs compliant
Stud Material
Brass
Fastening Type
pipe installation
Housing Colour
black
Window Material
PC
Housing Material
Steel
Operating Medium
neutrale Flüssigkeiten
Connection Position
Back side centred
Construction Set Up
Pipe spring pressure gauge without measuring unit
Display Range (bar)
0 to 10
Protection Category
IP53
Pneumatic Connection
QS-6
LABS (PWIS) Conformity
VDMA24364-B2-L
Medium Temperature (°C)
-20 to 60
Operating Pressure (MPa)
0 to 1
Ambient Temperature (°C)
-20 to 60
Factor Alternating Strain
0.66
Measurement Precision Class
5
Nominal Size Pressure Gauge
15
From Medium Contacting Materials
Brass
Note On Operating And Control Medium
kein Sauerstoff
EAN
4052568070557
Manufacturer
Festo
