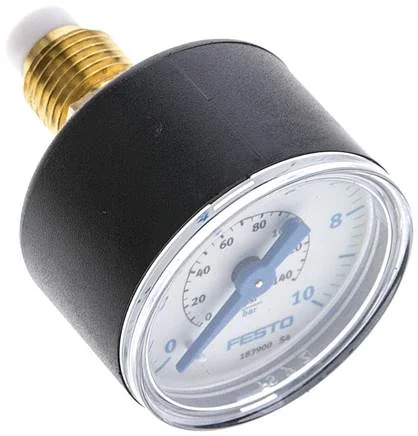

Festo - MA-40-10-G1/4-EN-183900 - Pressure Gauge

SKU: festo-ma-40-10-g1-4-en-183900

Browse all parts
Festo - MA-40-10-G1/4-EN-183900 - Pressure Gauge

€23.34€19.95 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€23.34

Brand
Festo
Scale
psi (innen)
Material Note
RoHs compliant
Stud Material
Brass
Fastening Type
pipe installation
Housing Colour
black
Window Material
PS
Housing Material
ABS
Operating Medium
neutrale Flüssigkeiten
Connection Position
Back side centred
Construction Set Up
Pipe spring pressure gauge
Display Range (bar)
0 to 10
Protection Category
IP43
Complies To Standard
EN 837-1
Pneumatic Connection
G1/4
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Medium Temperature (°C)
-20 to 60
Operating Pressure (MPa)
0 to 1
Ambient Temperature (°C)
-20 to 60
Factor Alternating Strain
0.66
Measurement Precision Class
2,5
Nominal Size Pressure Gauge
40
From Medium Contacting Materials
Brass
Note On Operating And Control Medium
kein Sauerstoff
EAN
4052568014384
Manufacturer
Festo
