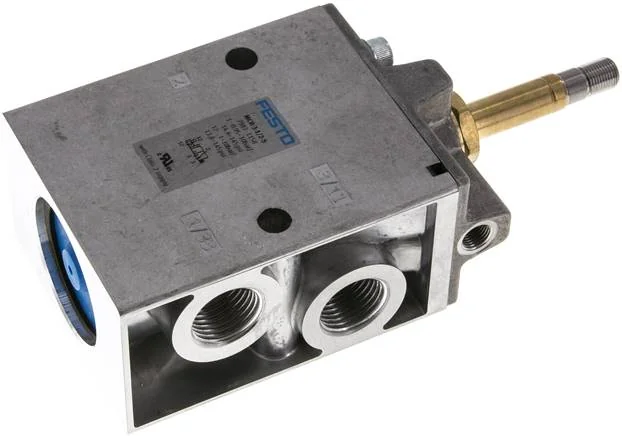

Festo - MCH-3-1/2-S-7983 - Solenoid Valve

SKU: festo-mch-3-1-2-s-7983

Browse all parts
Festo - MCH-3-1/2-S-7983 - Solenoid Valve

€376.20€321.54 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€376.20

Brand
Festo
B-value
0.3
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
52,0
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
14
Construction Set Up
Plate seat
Protection Category
IP65
Pitch Dimension (mm)
69
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
Shifting Time On (ms)
22
Control Pressure (MPa)
0,1 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/2
Shifting Time Off (ms)
54
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
See solenoid coil, order separately
Control Air 12 Connection
G1/8
Corrosion Resistance Class KBK
1 - low corrosion stress
Support Air Control Connection 12
G1/8
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2200
Max. Negative Test Impulse For 1 Signal
3700
Standard Nominal Flow Rate (Standardised To DIN 1343)
3700
EAN
4052568111199
Manufacturer
Festo
