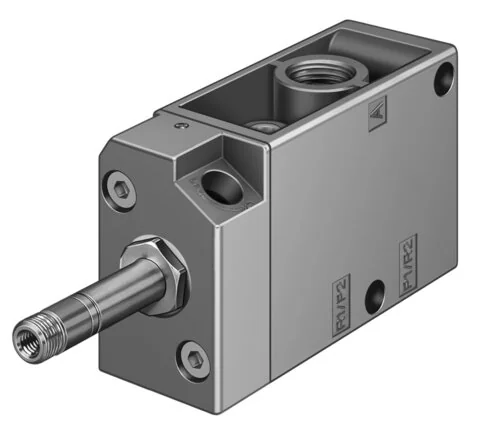

Festo - MFH-3-1/4-S-NPT-10873 - Solenoid Valve

SKU: festo-mfh-3-1-4-s-npt-10873

Browse all parts
Festo - MFH-3-1/4-S-NPT-10873 - Solenoid Valve

€234.62€200.53 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€234.62

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
30,5
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
7
Construction Set Up
Plate seat
Protection Category
IP65
Pitch Dimension (mm)
32
Electrical Connection
Via f-coil, order separately
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
Shifting Time On (ms)
10
Control Pressure (MPa)
0.1 to 0.8
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
1/4 NPT
Pneumatic Connection 2
1/4 NPT
Pneumatic Connection 3
1/4 NPT
Shifting Time Off (ms)
29
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
See solenoid coil, order separately
Control Air 12 Connection
10-32 UNF-2B
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2200
Max. Negative Test Impulse For 1 Signal
3700
Standard Nominal Flow Rate (Standardised To DIN 1343)
800
EAN
4052568303709
Manufacturer
Festo
