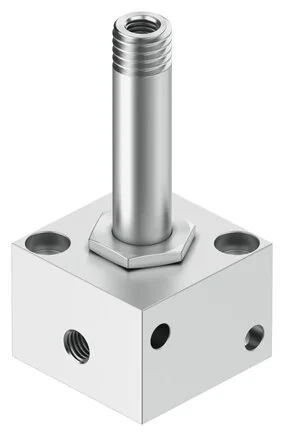

Festo - MFH-3-M5-4450 - Solenoid Valve

SKU: festo-mfh-3-m5-4450

Browse all parts
Festo - MFH-3-M5-4450 - Solenoid Valve

€156.39€133.67 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€156.39

Brand
Festo
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Valve Function
3/2 closed monostable
Exhaust Function
Cannot be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Nominal Width (mm)
1,3
Construction Set Up
Plate seat
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
9
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
M5
Pneumatic Connection 3
M5
Shifting Time Off (ms)
16
Medium Temperature (°C)
-15 to 60
Operating Pressure (bar)
0 to 0.8
Ambient Temperature (°C)
-15 to 40
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
58
EAN
4052568000608
Manufacturer
Festo
