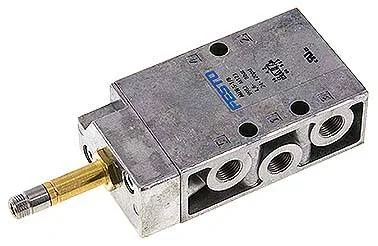

Festo - MFH-5-1/8-9982 - Solenoid Valve

SKU: festo-mfh-5-1-8-9982

Browse all parts
Festo - MFH-5-1/8-9982 - Solenoid Valve

€209.77€179.29 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€209.77

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
TPE-U(PU)
Valve Function
5/2 monostable
Build Width (mm)
26,0
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Nominal Width (mm)
5
Construction Set Up
Plate seat
Protection Category
IP65
Pitch Dimension (mm)
27
Electrical Connection
Via f-coil, order separately
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
Shifting Time On (ms)
8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Pneumatic Connection 4
G1/8
Pneumatic Connection 5
G1/8
Shifting Time Off (ms)
36
Freedom From Cross-talk
no
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,18 to 0,8
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
See solenoid coil, order separately
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2200
Max. Negative Test Impulse For 1 Signal
3700
Standard Nominal Flow Rate (Standardised To DIN 1343)
500
EAN
4052568002060
Manufacturer
Festo
